FLEXIDOME outdoor 5100i IR
The FLEXIDOME outdoor 5100i IR family provides excellent low-light performance with intelligent IR illumination up to 45 m (148 ft) and starlight technology. Built-in IVA Pro analytics, two-way audio, and robust weather resistance support building security and other critical applications.
- Up to 4K ultra HD for highly detailed image
- Starlight camera technology with excellent low-light performance
- IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
- High Dynamic Range to see every detail in both bright and dark areas of the scene
- Built-in intelligent IR illuminator with up to 45 m (148 ft) viewing distance
Part of the family
FLEXIDOME outdoor 5100i IR · 3 models
Pick a model to see its full specifications and data sheet.

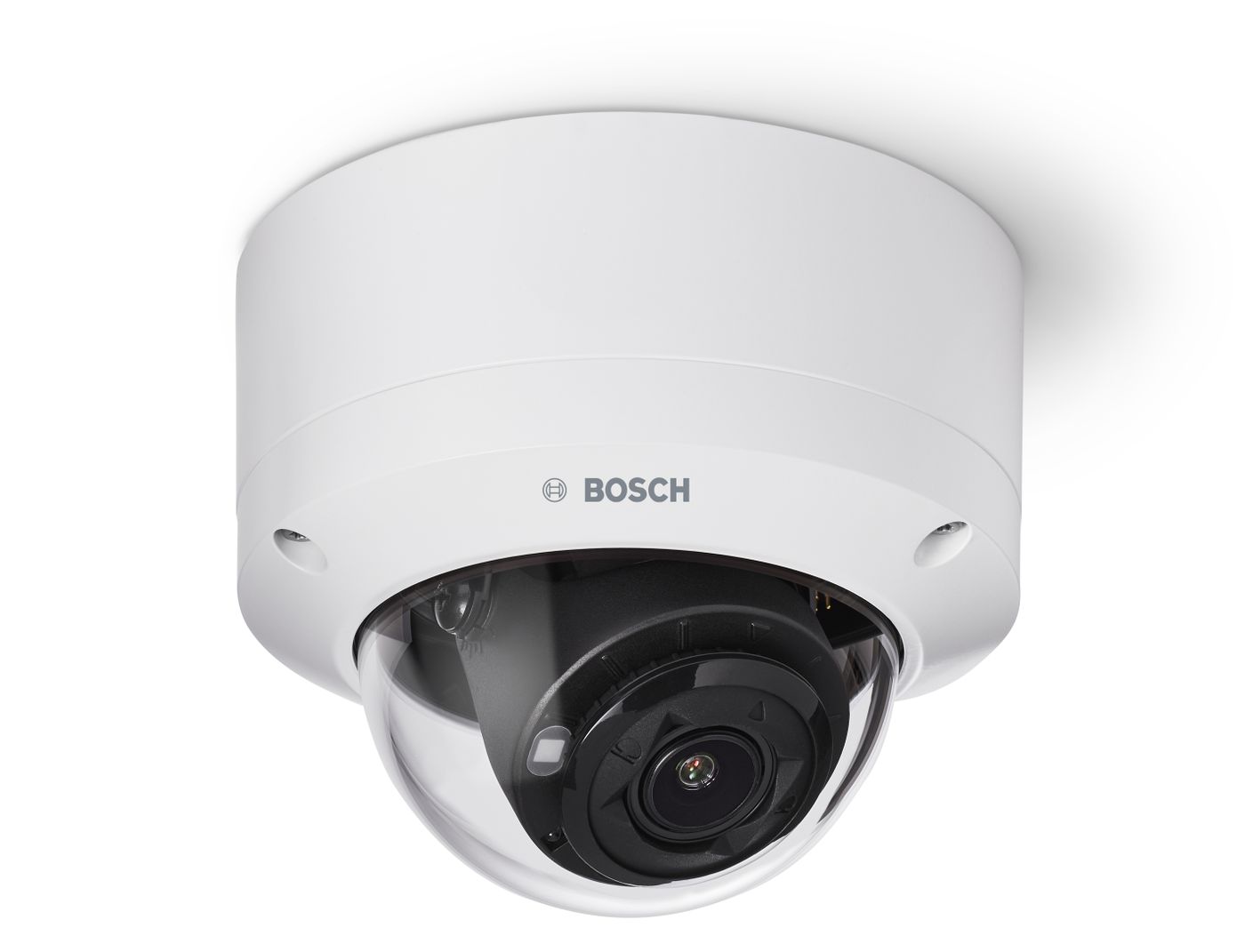

NDE-5703-AL
Fixed dome 5MP HDR 3.2-10.5mm IP66 IR IO
The FLEXIDOME outdoor 5100i IR family provides excellent low-light performance with intelligent IR illumination up to 45 m (148 ft) and starlight technology. Built-in IVA Pro analytics, two-way audio, and robust weather resistance support building security and other critical applications.
View DetailsNDE-5702-AL
Fixed dome 2MP HDR 3.2-10.5mm IP66 IR IO
The FLEXIDOME outdoor 5100i IR family provides excellent low-light performance with intelligent IR illumination up to 45 m (148 ft) and starlight technology. Built-in IVA Pro analytics, two-way audio, and robust weather resistance support building security and other critical applications.
View DetailsNDE-5704-AL
Fixed dome 8MP HDR 3.2-10.5mm IP66 IR IO
The FLEXIDOME outdoor 5100i IR family provides excellent low-light performance with intelligent IR illumination up to 40 meters (132 ft) and starlight technology. Built-in IVA Pro analytics, two-way audio, and robust weather resistance support building security and other critical applications.
View Details
Product Overview
Minimize false triggers with intelligent detection
Built-in IVA Pro Buildings reliably detects and classifies people and vehicles in crowded scenes, filtering out environmental noise to help operators focus on real events.
Maintain clear visibility in extreme lighting
Starlight camera technology and High Dynamic Range ensure you see every critical detail in both bright sunlight and near-zero light conditions.
Continuous awareness in near total darkness
An integrated intelligent IR illuminator automatically adjusts to the scene, providing clear visibility up to 45 m (148 ft) without over-exposing nearby objects.
Reduce installation time and deployment friction
A modular design with a hardware-free click-and-rotate mechanism allows integrators to mount and configure the device quickly, minimizing disruption to daily operations.
Secure data from capture to delivery
A built-in Secure Element and advanced encryption standards ensure your video data remains protected against malicious attacks and unauthorized access.
Technical Specifications
| Sensor type | 1/2.8 inch CMOS ; 1/2.7-inch CMOS |
|---|---|
| Resolution | 2MP ; 5MP ; 8MP |
| Low light technology | starlight |
| WDR technology | HDR |
| Frame rate (fps) | 1 – 60 fps (2MP/5MP) ; 1 – 30 fps (8MP) |
| Lens focal length (mm) | 3.2 to 10.5 mm |
| Horizontal field of view (°) | 105° – 31° (2MP, 8MP) ; 96º - 29º (5MP) |
| Field of view adjustment | Motorized zoom/focus |
| Video compression | H.264 / AVC; H.265 / HEVC; M-JPEG |
| IP rating | IP66 |
| Impact protection | IK10 ; NEMA 4X |
| Operating temperature | -40 °C – 55 °C (-40 °F – 131 °F) |
| IR illumination range | 40 – 45 m |
| Analytics (built-in) | IVA Pro Buildings ; IVA Pro Privacy |
| Analytics (available) | IVA Pro Perimeter ; IVA Pro Traffic ; IVA Pro Appearance ; IVA Pro Personal Protective Equipment ; IVA Pro Visual Gun Detection ; IVA Pro License Plate ; IVA Pro Vehicle Make Model ; IVA Pro Dangerous Good Signs ; Intelligent Audio Analytics |
Technical Documents
- FLEXIDOME outdoor 5100i IR – Data sheetDownload PDF
Data sheet · 3.4 MB
- Fixed dome 5MP HDR 3.2-10.5mm IP66 IR IO – Data sheetDownload PDF
Data sheet · 3.4 MB
- Fixed dome 2MP HDR 3.2-10.5mm IP66 IR IO – Data sheetDownload PDF
Data sheet · 3.4 MB
- Fixed dome 8MP HDR 3.2-10.5mm IP66 IR IO – Data sheetDownload PDF
Data sheet · 3.4 MB
Frequently asked questions
What type of analytics does the FLEXIDOME outdoor 5100i IR include?
The camera comes with IVA Pro Buildings pre-installed, delivering highly reliable deep-learning based detection and tracking of persons and vehicles. It reliably detects and classifies objects even in challenging environments with rain, snow, moving trees, or shadows, minimizing false triggers without the need for manual calibration.
How does the camera perform in low-light environments?
It features starlight camera technology and High Dynamic Range (HDR), providing highly detailed images in both bright and dark areas of the scene. Additionally, a built-in intelligent infrared (IR) illuminator ensures continuous visibility in extreme low-light conditions, with a viewing distance of up to 45 m(148 ft).
Does the camera offer simplified installation options?
Yes, the mechanical design uses an installation surface mount box (SMB) and easy cable management. It features a click-and-rotate mechanism on the mounting plate that requires no hardware to secure the camera to the housing. Power-over-Ethernet (PoE) support further simplifies deployment by using a single cable for both power and network connectivity.
What cybersecurity measures are built into the device?
The device incorporates a built-in Secure Element (SE) hardware providing main Trusted Platform Module (TPM) functionality to ensure the highest levels of data security and privacy. It supports three-level password protection, authenticated secure uploads, and Public Key Infrastructure (PKI) for superior protection against malicious attacks.
Is the camera built to withstand harsh outdoor conditions?
The robust design is rated to IP66, NEMA Type 4X, and IK10 standards, safeguarding the device against rain and dust while offering high resistance against vandalism and tampering. It operates reliably in a wide ambient temperature range between -40 degrees Celsius and +55 degrees Celsius.
Where can I buy genuine FLEXIDOME outdoor 5100i IR in Vietnam?
FLEXIDOME outdoor 5100i IR is supplied in Vietnam by IQSIGHT Vietnam with data sheets, VMS integration support (BVMS, Genetec, Milestone) and technical support. Send a quotation request for a project-specific configuration.
Is original technical documentation available for FLEXIDOME outdoor 5100i IR?
Yes. The original English data sheet of every part number is in the Document Library; final specifications follow the latest IQSIGHT data sheet.
