DINION thermal 8100i - VGA

DINION thermal 8100i - VGA

The DINION thermal 8100i - VGA family maximizes detection range in 0 lux conditions for long-range mission-critical perimeter protection applications. Combining high-resolution thermal imaging with built-in IVA Pro analytics, this camera provides continuous visibility and ultra-low false alarm rates in complete darkness or challenging weather.

Order number:
124850612107
  • Maximum detection range in zero lux condition for large-scale perimeter protection.

  • Thermal imaging and IVA Pro Perimeter help achieve an ultra-low false alarm rate.

  • High resolution VGA thermal imaging.

  • Rugged housing and cybersecure.

  • AI-based (3D) autocalibration resulting in a fast and simple installation.

Product Overview

Detect what matters with near-zero false alarms

Thermal camers with built-in IVA Pro Perimeter deliver industry leading reliability with an exceptionally low false alarm rate, and clearer thermal video that operators can trust.

Longest reliable detection

Advanced VGA thermal imaging detects heat signatures, ensuring reliable long-range detection in total darkness, rain, smoke, fog, shadow or glare.

Simplify deployment with AI autocalibration

AI-based 3D autocalibration removes the complexity of 3D calibration and potential user error to deliver the best analytics performance.

Ensure reliability in extreme environments

A rugged, corrosion-resistant housing with built-in heaters ensures continuous performance through freezing temperatures, heavy rain, and vandalism attempts.

Protect critical data from cyber threats

A built-in Trusted Platform Module and secure firmware protection safeguard device access and network communications against malicious attacks.

Key Specifications

Sensor typeUncooled microbolometer (VOx)
Resolution640 x 480
Sensor technologyThermal imaging
WDR technologyThermal sensitivity: < 30 mK at 25 °C (77 °F)
Frame rate (fps)1 – 30 fps
Lens focal length (mm)6 mm ; 14 mm ; 25 mm ; 42 mm
Horizontal field of view (°) 70° ; 31° ; 17° ; 10°
Field of view adjustmentFixed lens
Video compressionH.264; H.265; M-JPEG
IP ratingIP66; IP67
Impact protectionIK10
Operating temperature-40 °C – 55 °C (-40 °F – 131 °F)
Analytics (built-in)IVA Pro Buildings; IVA Pro Perimeter

Frequently Asked Questions

Common questions about the DINION thermal 8100i - VGA

How does the DINION thermal 8100i - VGA perform in complete darkness?

By detecting heat signatures instead of visible light, the camera delivers high-resolution VGA thermal imaging. This allows operators to monitor large perimeters and identify potential threats in zero-lux conditions, smoke, fog, or heavy rain.

How does the camera reduce false alarms in outdoor environments?

A key advantage of the DINON thermal 8100i is the combination of Deep Neural Network (DNN)-based person & vehicle detectors with proven motion and foreground/background analysis. This advanced approach improves the detection accuracy while reducing the false alarm caused by animals, lines, vegetation, shadows and other environmental factor.

Does the camera require complex manual calibration during setup?

No. The camera utilizes AI-based 3D autocalibration to streamline the installation process. This ensures precise setup with minimal effort, allowing integrators to deploy the system quickly and accurately across expansive sites.

What measures protect the camera from cyber threats?

Designed to be secure by design, the camera includes an onboard Trusted Platform Module (TPM) and an Embedded Login Firewall. It supports 802.1x network authentication and advanced certificate handling, ensuring that data transport and device access remain protected against malicious attacks.

Is the camera suitable for extreme weather and harsh outdoor conditions?

Yes, the camera is built with a rugged, corrosion-resistant aluminum housing rated to IP66, IP67, and IK10 standards. It features an interior heater and a window defroster, enabling reliable operation in temperatures ranging from -40 °C to +55 °C (-40 °F to +131 °F).

Which part numbers are in the DINION thermal 8100i - VGA family?

The DINION thermal 8100i - VGA family currently has 4 part numbers: NBT-8701-F06VF, NBT-8701-F14VF, NBT-8701-F25VF, NBT-8701-F42VF. Each has its own page with specifications, PDF data sheet and a quotation button.

Where can I buy genuine DINION thermal 8100i - VGA in Vietnam?

DINION thermal 8100i - VGA is supplied in Vietnam by IQSIGHT Vietnam with data sheets, VMS integration support (BVMS, Genetec, Milestone) and technical support. Send a quotation request with the part number for a project-specific configuration.

Is original technical documentation available for DINION thermal 8100i - VGA?

Yes. The original English data sheet of DINION thermal 8100i - VGA is in the Document Library (search by part number); final specifications follow the latest IQSIGHT data sheet.

Part of the family

DINION thermal 8100i - VGA

4 models

Part numbers in this family:NBT-8701-F06VFNBT-8701-F14VFNBT-8701-F25VFNBT-8701-F42VF

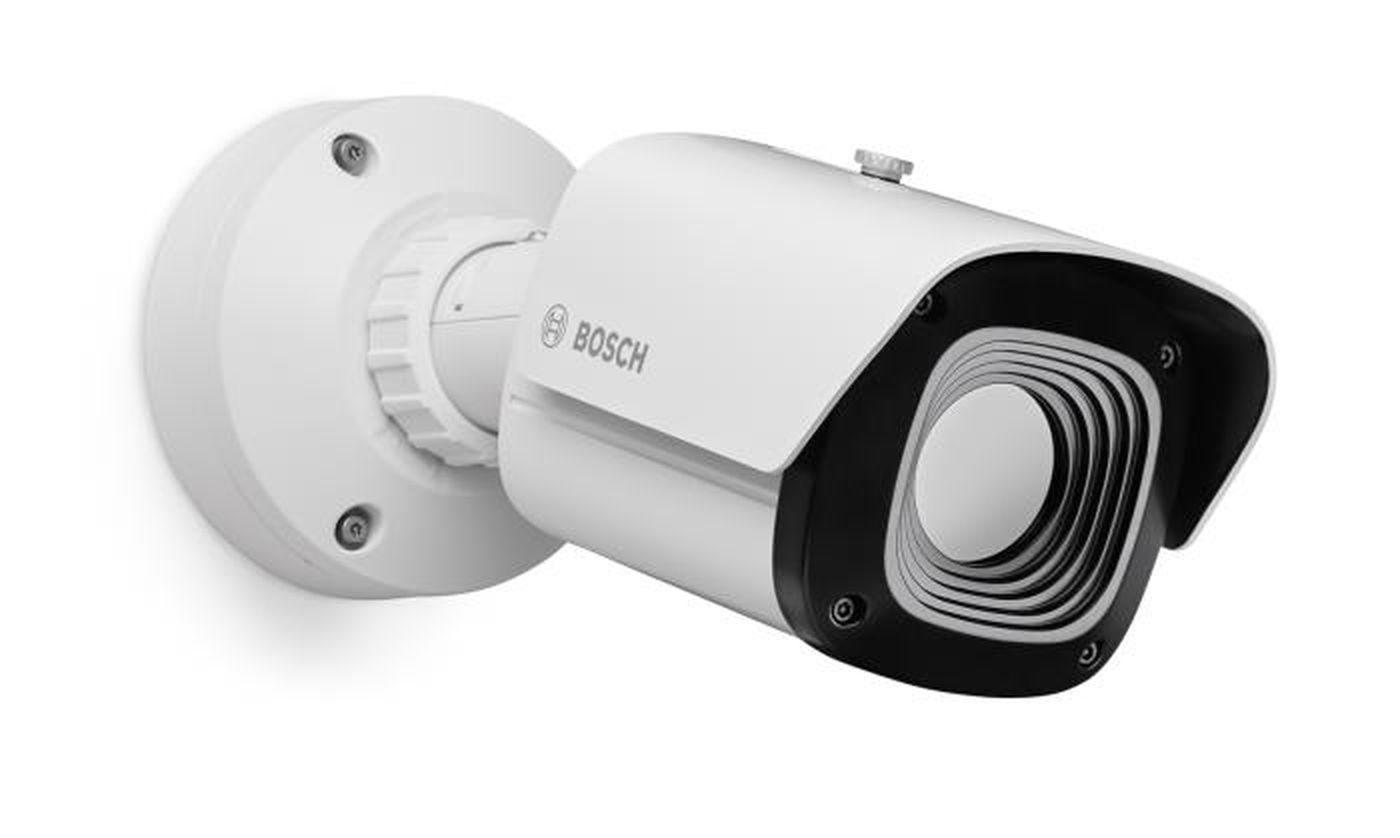

NBT-8701-F06VF – Bullet thermal VGA 70° 30Hz

NBT-8701-F06VF – Bullet thermal VGA 70° 30Hz

The DINION thermal 8100i - VGA family maximizes detection range in 0 lux conditions for long-range mission-critical perimeter protection applications. Combining high-resolution thermal imaging with built-in IVA Pro analytics, this camera provides continuous visibility and ultra-low false alarm rates in complete darkness or challenging weather.

View Details

NBT-8701-F06VF – Bullet thermal VGA 70° 30Hz

Sensor typeUncooled microbolometer (VOx)
Sensor technologyThermal imaging
WDR technologyThermal sensitivity: < 30 mK at 25 °C (77 °F)
Frame rate (fps)1 fps - 30 fps
View Details

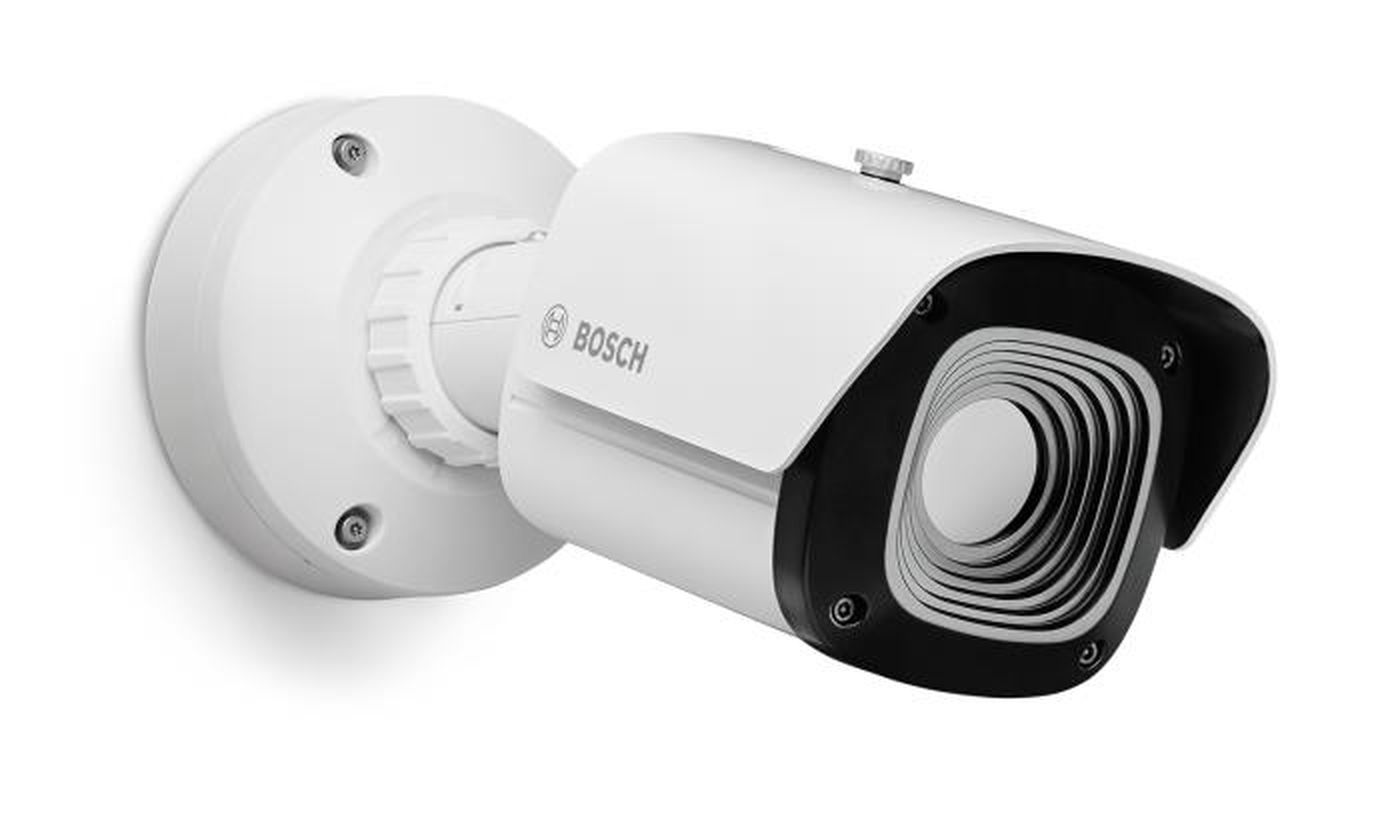

NBT-8701-F14VF – Bullet thermal VGA 31° 30Hz

NBT-8701-F14VF – Bullet thermal VGA 31° 30Hz

The DINION thermal 8100i - VGA family maximizes detection range in 0 lux conditions for long-range mission-critical perimeter protection applications. Combining high-resolution thermal imaging with built-in IVA Pro analytics, this camera provides continuous visibility and ultra-low false alarm rates in complete darkness or challenging weather.

View Details

NBT-8701-F14VF – Bullet thermal VGA 31° 30Hz

Sensor typeUncooled microbolometer (VOx)
Resolution640 x 480
Sensor technologyThermal imaging
WDR technologyThermal Sensitivity: < 30 mK at 25 °C (77 °F)
View Details
NBT-8701-F25VF – Bullet thermal VGA 17° 30Hz

NBT-8701-F25VF – Bullet thermal VGA 17° 30Hz

The DINION thermal 8100i - VGA family maximizes detection range in 0 lux conditions for long-range mission-critical perimeter protection applications. Combining high-resolution thermal imaging with built-in IVA Pro analytics, this camera provides continuous visibility and ultra-low false alarm rates in complete darkness or challenging weather.

View Details

NBT-8701-F25VF – Bullet thermal VGA 17° 30Hz

Sensor typeUncooled microbolometer (VOx)
Resolution640 x 480
Sensor technologyThermal imaging
WDR technologyThermal sensitivity: < 30 mK at 25 °C (77 °F)
View Details
NBT-8701-F42VF – Bullet thermal VGA 10° 30Hz

NBT-8701-F42VF – Bullet thermal VGA 10° 30Hz

The DINION thermal 8100i - VGA family maximizes detection range in 0 lux conditions for long-range mission-critical perimeter protection applications. Combining high-resolution thermal imaging with built-in IVA Pro analytics, this camera provides continuous visibility and ultra-low false alarm rates in complete darkness or challenging weather.

View Details

NBT-8701-F42VF – Bullet thermal VGA 10° 30Hz

Sensor typeUncooled microbolometer (VOx)
Resolution640 x 480
Sensor technologyThermal imaging
WDR technologyThermal Sensitivity: < 30 mK at 25 °C (77 ° F)
View Details
